How to Use Thick-Film Pastes for Fuel Level Sensor Boards
Modern fuel level sensing systems require reliable conductivity, long-term stability, resistance to harsh automotive fluids, and dependable signal accuracy. Thick-film pastes play a critical role in achieving these requirements in fuel level sensor boards used across automotive, industrial, marine, and generator applications.
At Rianns Resources LLP, we support customers with advanced material solutions for printed electronics and sensor technologies. This article explains how thick-film pastes are used in fuel level sensor boards and the important process considerations for achieving consistent performance.

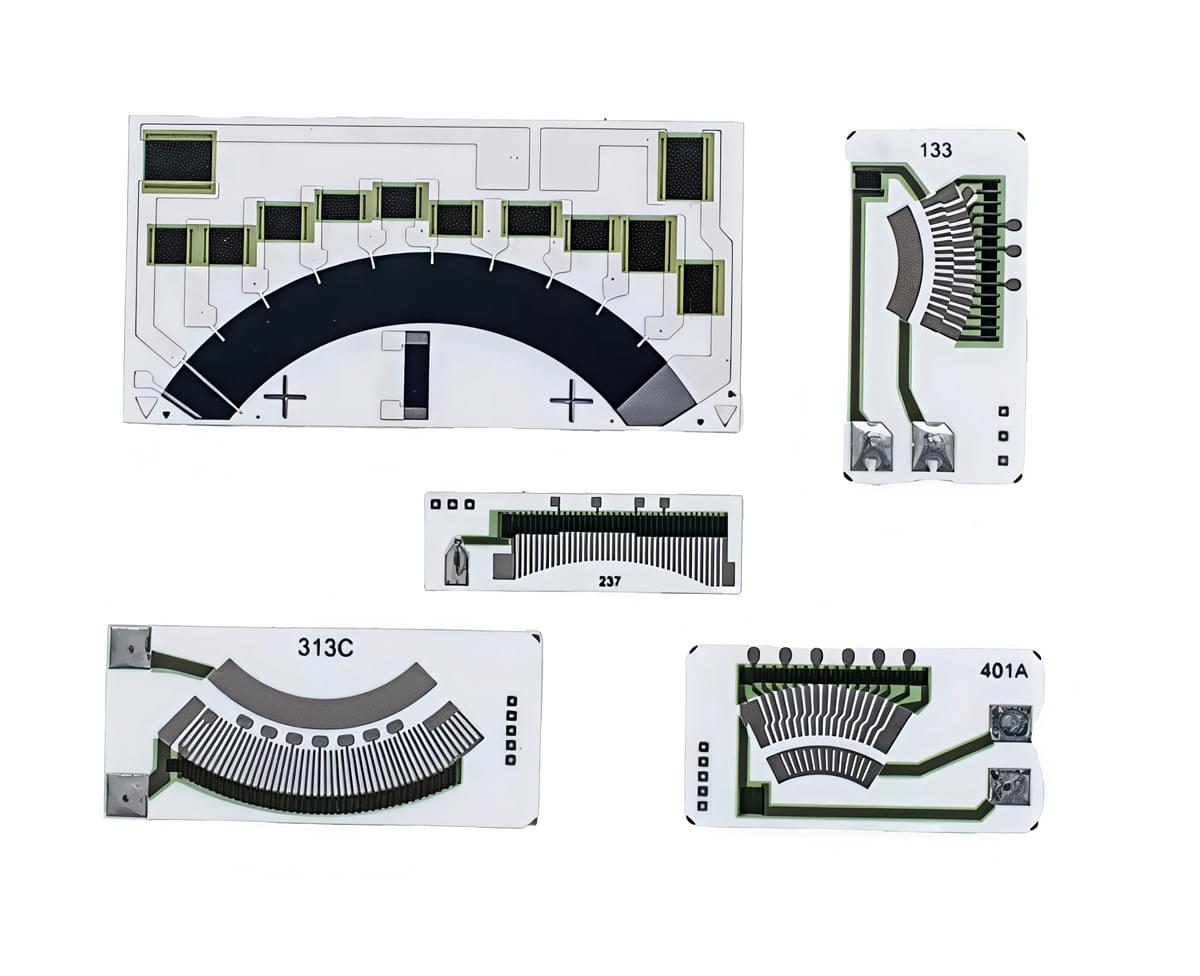

What Is a Fuel Level Sensor Board?
A fuel level sensor board is typically a printed resistive circuit installed inside a fuel tank assembly. As the float arm moves with the fuel level, the wiper contact slides across the printed resistor track, changing resistance values that are interpreted by the vehicle’s fuel gauge or electronic control system.
These sensor boards must withstand:
Continuous mechanical contact
- Exposure to gasoline, diesel, ethanol blends, biodiesel, or chemicals
- Temperature cycling
- Vibration and humidity
- Long operational life
- This is where thick-film technology becomes highly valuable.
Why Thick-Film Pastes Are Used
Thick-film pastes are specially formulated conductive, resistive, or dielectric materials that are screen printed onto substrates and cured to form durable electronic circuits.
Key Advantages
Excellent wear resistance
- Stable electrical performance
- Cost-effective mass production
- Strong adhesion to substrates
- Chemical and fuel resistance
- Compatibility with automated manufacturing
- Typical Layers in a Fuel Sensor Board
1. Conductive Tracks
Silver, silver-palladium, or carbon conductive pastes are printed to create electrical pathways.
Applications include:
Signal traces
Contact pads
Connector terminals
2. Resistive Element
Resistive thick-film paste forms the variable resistor track that interacts with the moving wiper.
Important characteristics:
Precise resistance value
- Low temperature coefficient
- Smooth surface finish
- High abrasion resistance
- 3. Protective Dielectric Layer
Dielectric or insulating pastes protect circuits from:
Fuel exposure
- Moisture
- Corrosion
- Mechanical damage
- Common Substrates Used
Fuel sensor boards are commonly printed on:
- FR4
- Alumina Ceramic
- Flexible polymer substrates
- Phenolic laminates
- High-temperature engineering plastics
- Substrate selection depends on:
Fuel chemistry
- Temperature requirements
- Mechanical flexibility
- Cost targets
- Manufacturing Process
Step 1: Surface Preparation
The substrate must be cleaned thoroughly to remove:
- Moisture
- Oil
- Dust
- Oxidation
- Proper cleaning improves adhesion and print consistency.
Step 2: Screen Printing
Thick-film paste is applied using precision screen printing.
Important process parameters:
- Squeegee pressure
- Mesh selection
- Print speed
- Paste viscosity
- Layer thickness
- Uniform printing is critical for accurate sensor performance.
Step 3: Drying and Curing
After printing, the paste is dried and cured according to material specifications.
Typical curing methods:
- Infrared curing
- Convection oven
- Tunnel furnace
- Low-temperature polymer curing
- Proper curing ensures
- Stable resistance
- Good adhesion
- Chemical durability
- Mechanical strength
- Step 4: Laser Trimming (If Required)
For high-precision applications, resistor values may be adjusted using laser trimming.
Benefits include:
- Better gauge linearity
- Improved calibration accuracy
- Reduced tolerance variation
Step 5: Protective Coating
Additional protective coatings may be applied for:
- Abrasion protection
- Fuel compatibility
- Extended sensor lifetime
- Key Performance Considerations
Wear Resistance
The wiper continuously moves across the resistor track. The paste formulation must withstand millions of cycles without significant degradation.
Fuel Compatibility
Different fuels affect materials differently:
- Gasoline
- Diesel
- Ethanol blends
- Methanol
- Biodiesel
Paste chemistry must be selected carefully for long-term exposure.
Electrical Stability
Resistance drift over time can cause inaccurate fuel readings. Stable formulations are essential for reliable operation.
Temperature Reliability
Automotive environments can range from sub-zero temperatures to high engine compartment heat. Thick-film systems must maintain performance throughout the operating range.
Typical Applications
Fuel level sensor boards are widely used in:
- Passenger vehicles
- Commercial trucks
- Motorcycles
- Marine fuel systems
- Industrial generators
- Agricultural equipment
- Construction machinery
How Rianns Resources LLP Supports Customers
At Rianns Resou
rces LLP, we help customers identify suitable thick-film material solutions for sensor and printed electronics applications.
Our support includes:
- Conductive paste selection
- Resistive paste recommendations
- Fuel-resistant material guidance
- Application support
- Manufacturing process consultation
- Sourcing assistance for specialty electronic materials
Fuel level sensor boards require a careful balance of electrical performance, mechanical durability, and chemical resistance. Thick-film pastes provide a proven and scalable solution for manufacturing robust fuel sensing systems across demanding industries.
With the right paste formulation, substrate choice, and process control, manufacturers can achieve highly reliable sensor performance and long operational life.
To learn more about thick-film materials and sensor applications, contact Rianns Resources LLP.
